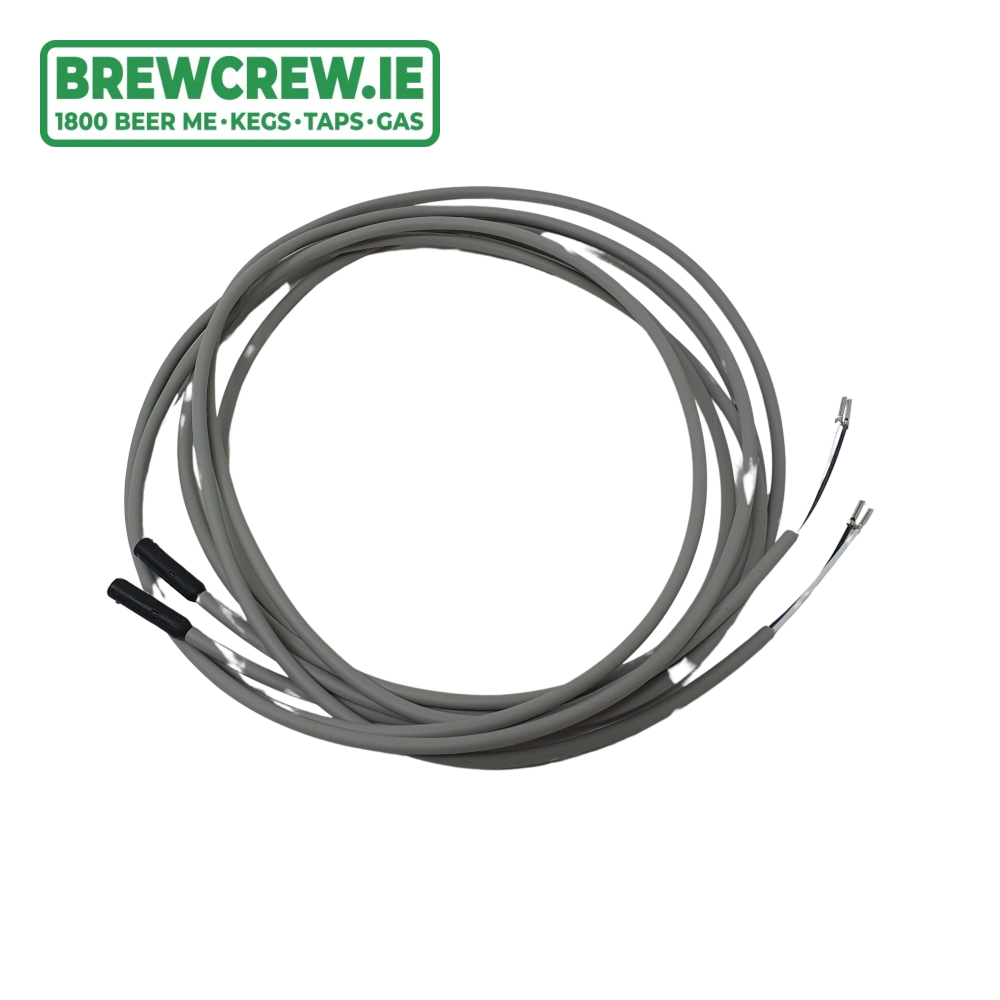

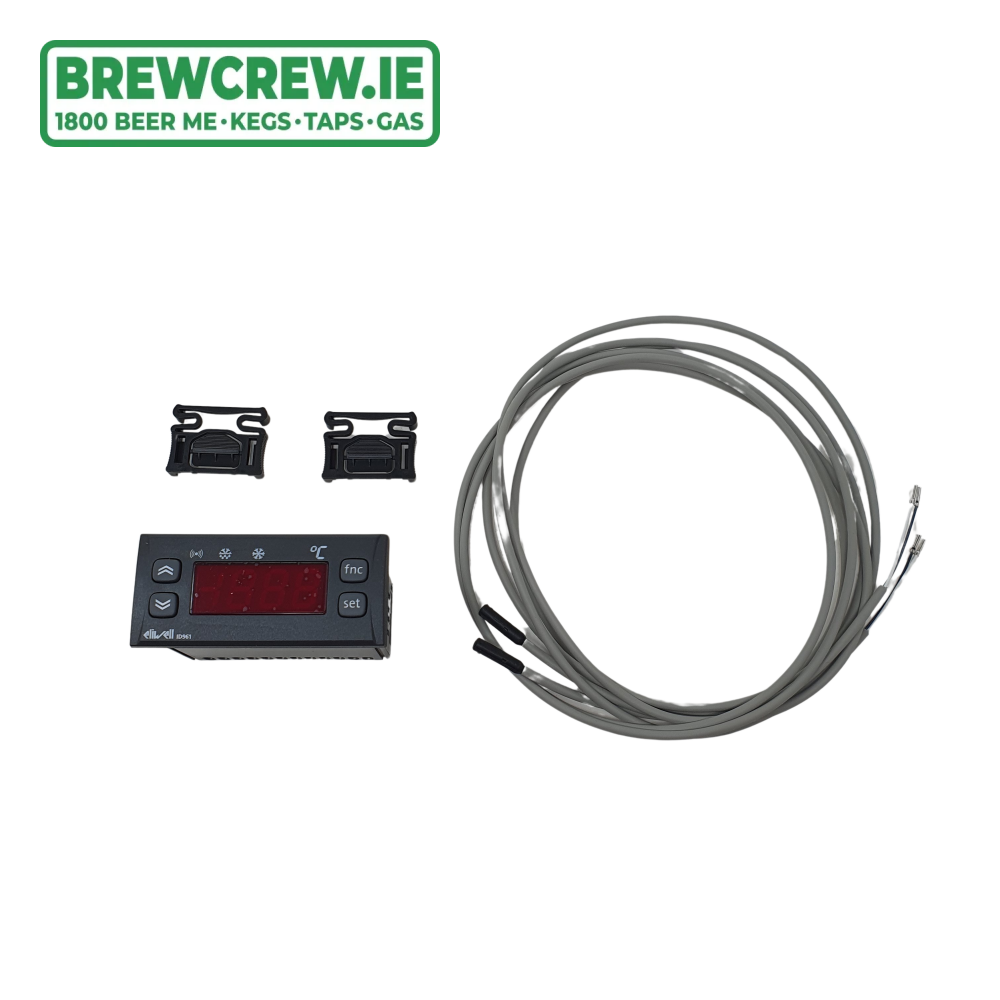

Eliwell Digital Termperature Control (Probe Included)
Need a Hand? Let Us Install This Part For You:
This digital thermostat is an ideal replacement for beer coolers with a damaged/faulty temperature display. Furthermore, you can easily upgrade mechanical stat machine by installing one of these controls - giving you the option of adjusting the bath temperature to your liking!

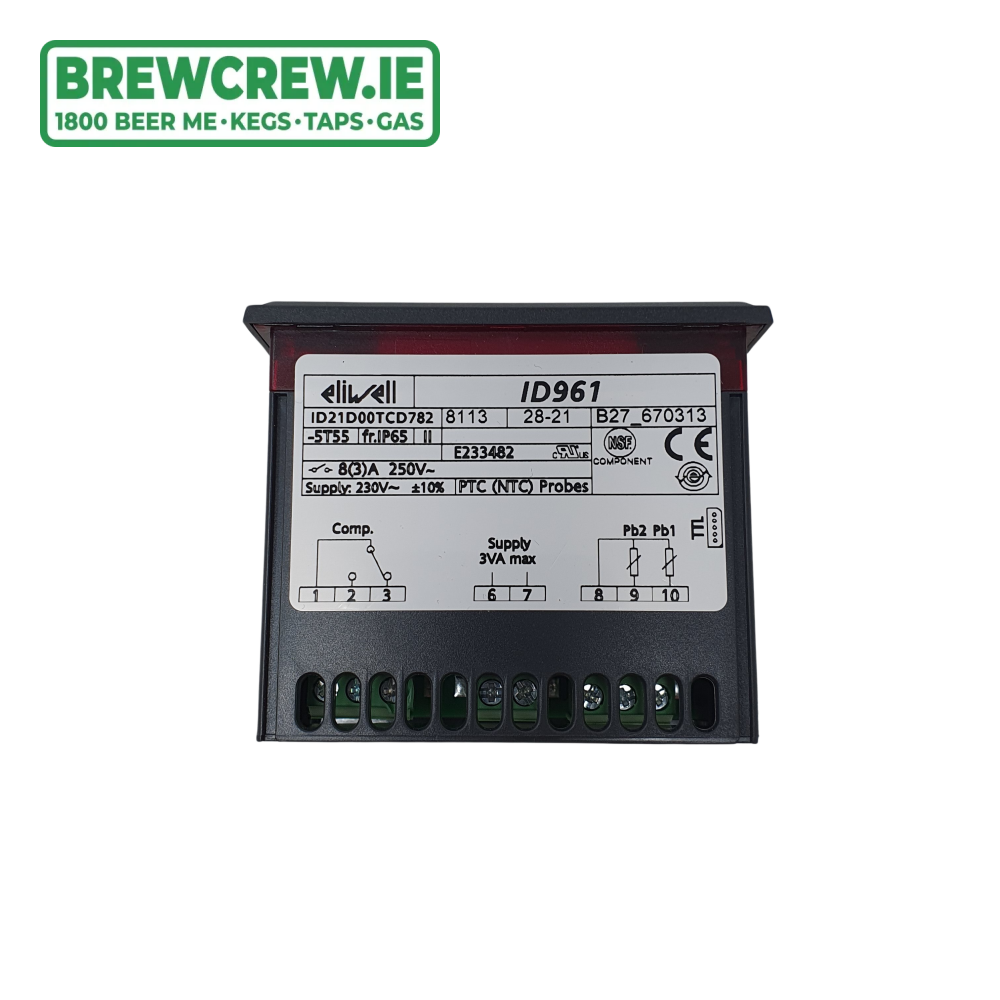

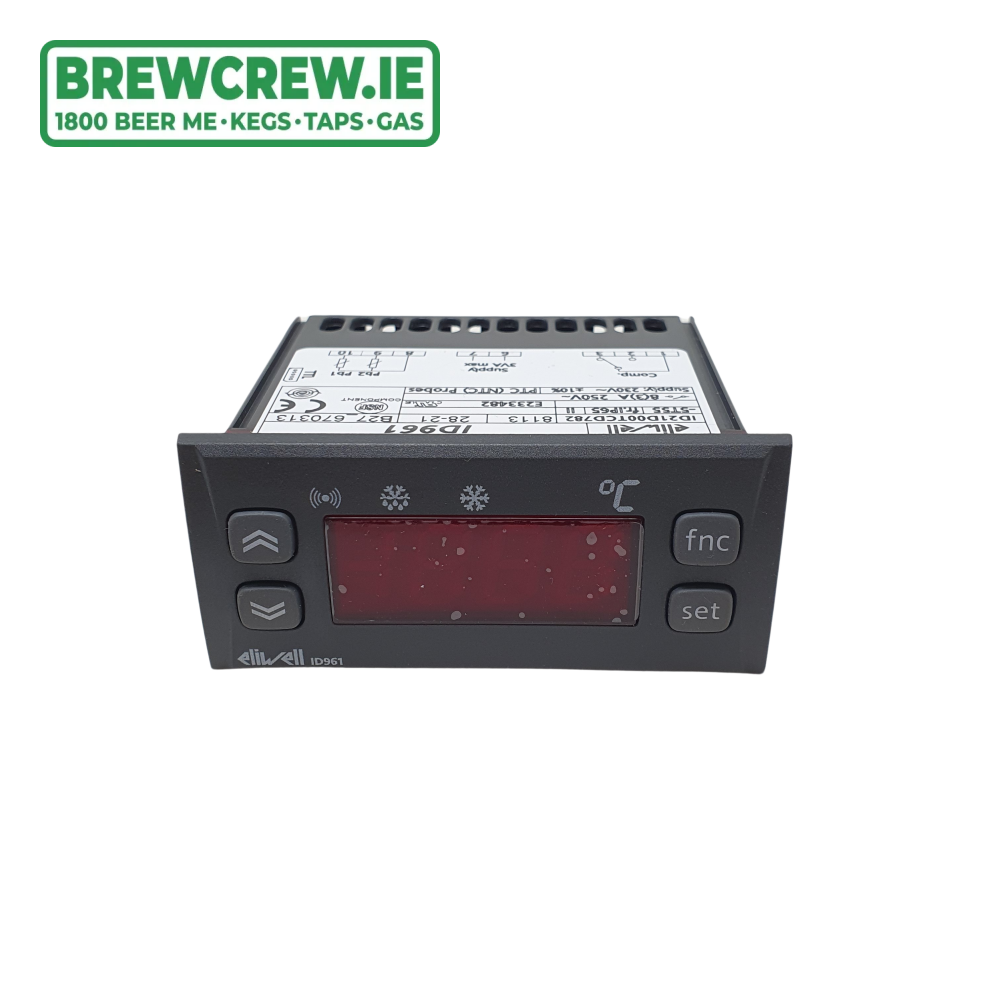

Eliwell - ID961
|E.WELL BRANDELS SPARES - 1A5317
From the manufacturer:
The ID 961 controllers are devices suitable for applications on normal temperature refrigerating units. They are provided with a PTC thermostatic probe input (NTC can be selected by parameter) and a relay output for compressor management. Defrost cycles are controlled at time intervals by stopping the compressor.
The value of the probe’s reading is viewed on a display with two digits and a minus sign for ID 961, three digits and a minus sign for ID 961 LX.

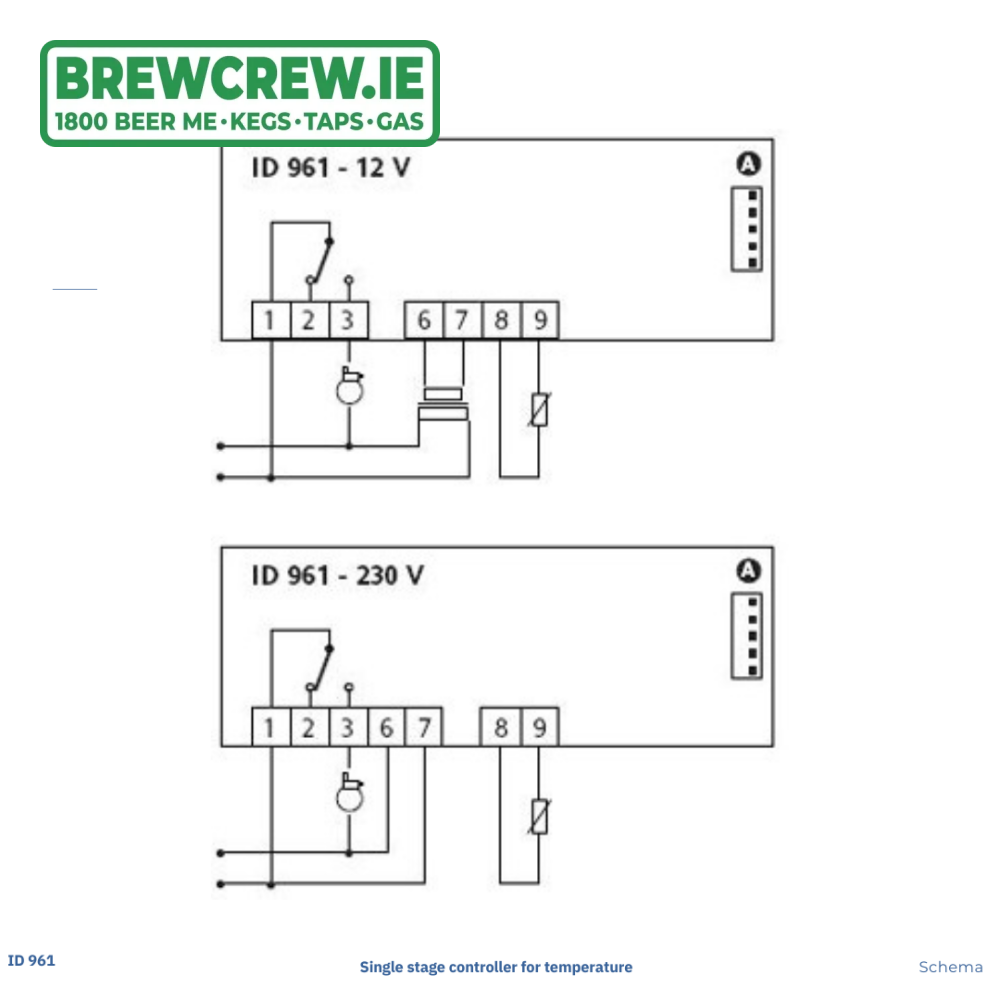

All versions are provided with a TTL connection in order to use Copy Card, the quick programming accessory. The 16 A compressor relay options and the buzzer are also provided. These controllers are available in the 32x74 standard format with a choice of 230 Va or 12 Va/c power supply voltage.

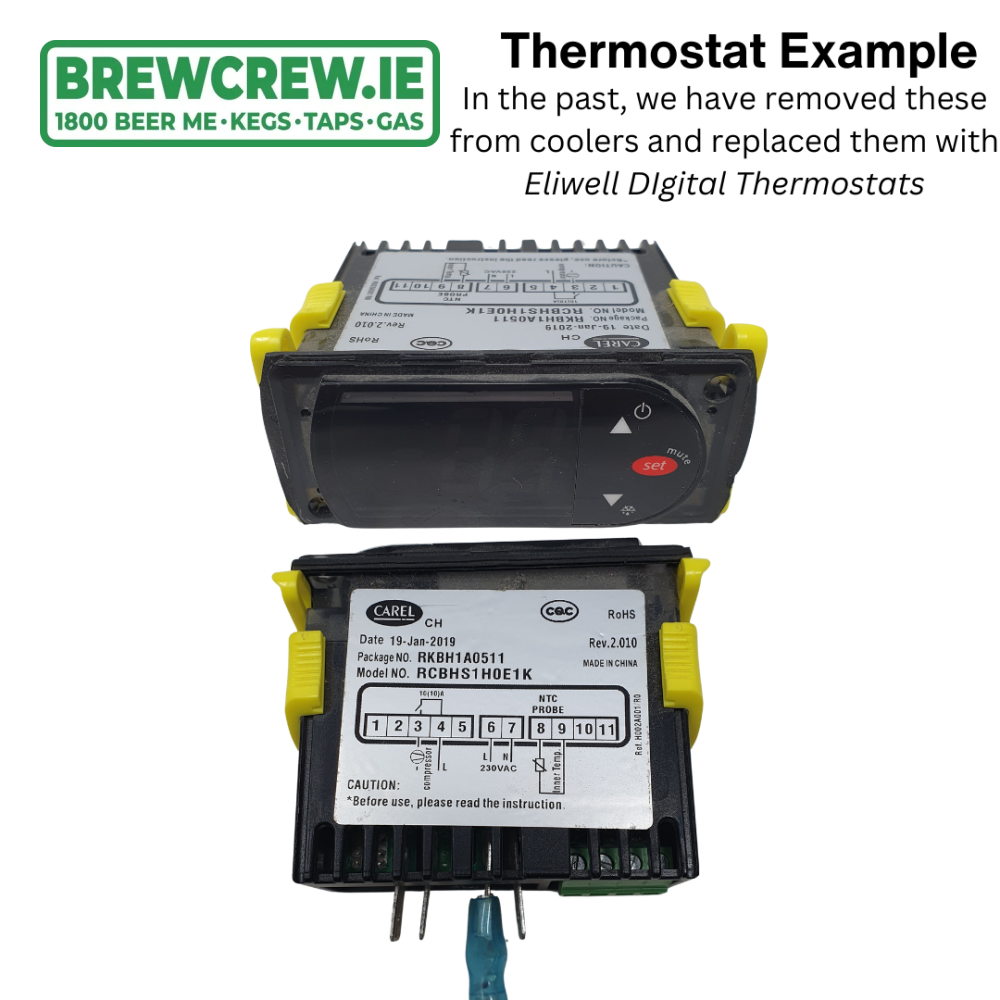

This Thermostat is a suitable replacement for many different factory variations, including:
Package No: RKBH1A0511
Model No: RCBHS1H0E1K
(As seen in Picture #7)
|plastic resin PC+ABS UL94V–0
|32x74 mm, depth 60 mm
cut out 29x71 mm (+0.2/–0.1mm)
|Usage environment humidity
|Storage environment humidity
|TTL port for Copy Card
|3½ digits plus sign
|above 0.5% of bottom scale + 1 digit
|1°C or 0.1°C (selectable with a parameter).
|230Vac, 12Vac/cc ± 15%, 50/60Hz
