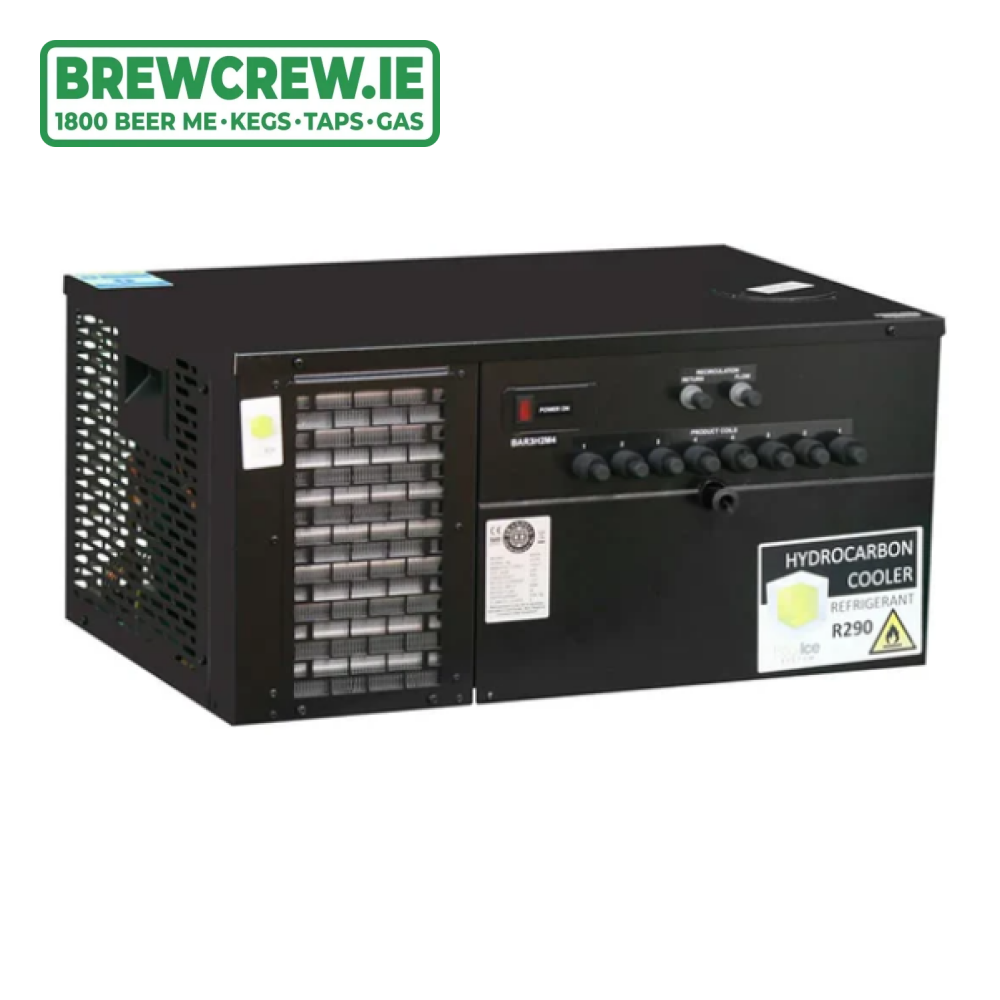

New - Four Coil Shelf Cooler (12 Month Warranty) Bar3H2E4 Cooler

NEW - Four Coil Shelf Cooler (12 Month Warranty) - BAR3H2E4

Regular price €755.00
/

Only 3 items in stock!
Price: Price Above is Vat Included - D12 Collection
Coils: 4 product coils with No2 Water Recirc flow/return pump piping.
Connections: Coils and Pump ready for John Guest 3/8" push fittings.
Dimensions: Height 282mm Width 570mm Depth 450mm (advise to allow plenty of room around machine for ventilation.
Availability: Available



The BARH3H is our high-performance shelf cooler option, capable of dispensing up to four chilled products. The Eco-Friendly Hydrocarbon R290 refrigeration system has been specifically developed and designed for improved energy. The BAR3H develops a massive 7Kgs of ice with impressive recovery times. The unit can be supplied with either a mechanical or digital thermostat for use with glycol / extra cold applications.

Customer driven design features:

- Designed-in performance enhancements to meet all demands and working environments
- Ideal for a range of applications – compact size ideally suited to under-counter installations
- First-class build quality, robust construction and attractive finish
- Improved access to components for easier maintenance and on-site servicing
Complementary models included in product range

Technical Specifications:

Weight:

Icebank weight: 7 kg nominal

Packed: 25 kg

Electrical:

Mains supply: 230v 1ph 50Hz

Run current: 1.25 amps

Start current: 4 amps Fuse: 10 amps

Refrigeration:

Compressor: 3 cc Compressor

starting torque: Low starting torque

Compressor duty (-10ºC Evap temp): 178 watts

Water bath capacity: 5 litres

Condenser type: Air cooled - Cu/Al construction

Refrigerant type charge: R290 refer rating plate

Performance:

Amount of product dispensed in the first hour with a ∆T of:

10ºC: 31 litres

20ºC: 16 litres

Controls: Ice Bank Control: Mechanical / Eliwell



Fan Motor:

Speed: 2750 rpm

Protection: Impedance protected

Things You Understand By Buying This Product
  • I am responsible to ensure my gas and beer system is balanced correctly.
  • I am responsible to ensure my gas and beer system is leak free.
  • I am responsible for technical mistakes I may make with equipment.
  • Keg dispense requires specialist equipment, reading, learning and listening.
  • I agree to report any fault with this item within 2 working days of purchase.
  • I agree to make every effort to return the item for inspection within 5 working days if there is a fault.
