Digital Stat Probe

Digital Stat Probe (1.5 metres) - 3B4341

CPARTS0006S

Need a Hand? Let Us Install This Part For You:

https://brewcrew.ie/collections/service/products/cooler-technical-inspection

Disclaimer: We have a NO RETURNS policy on all cooler parts

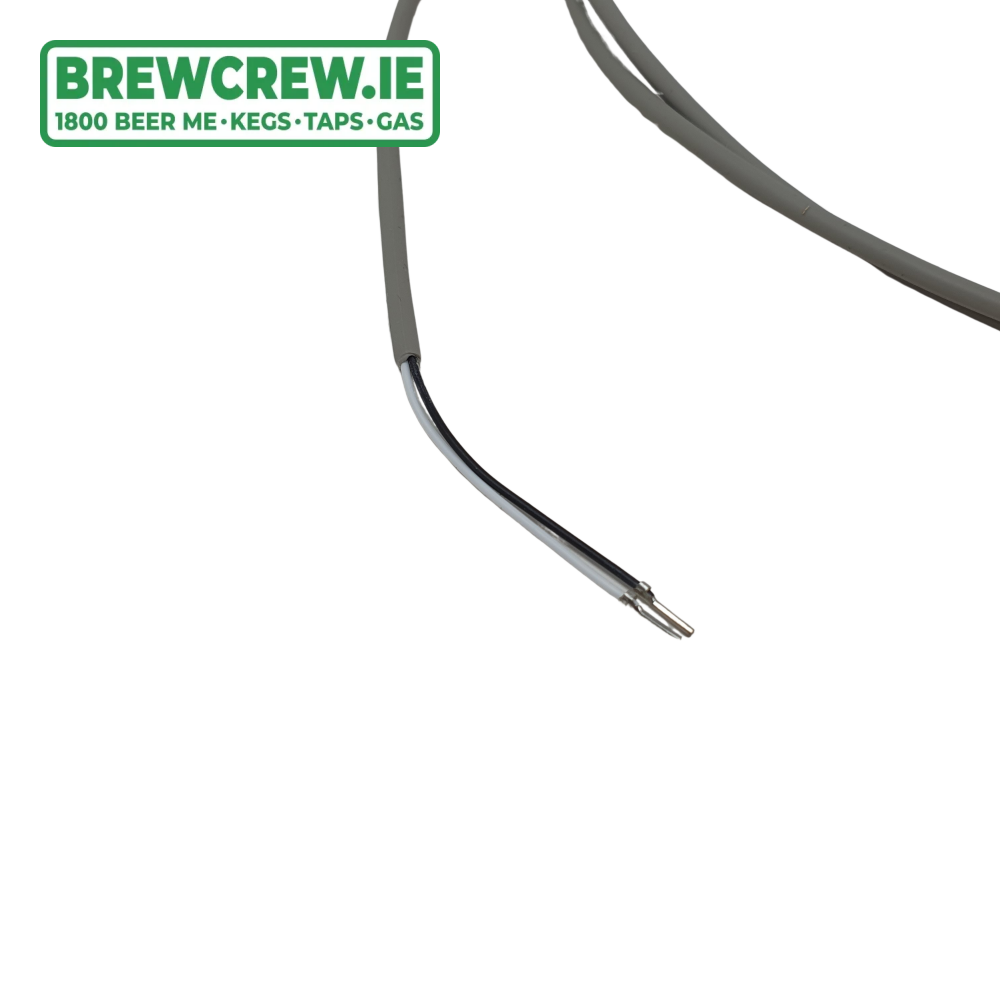

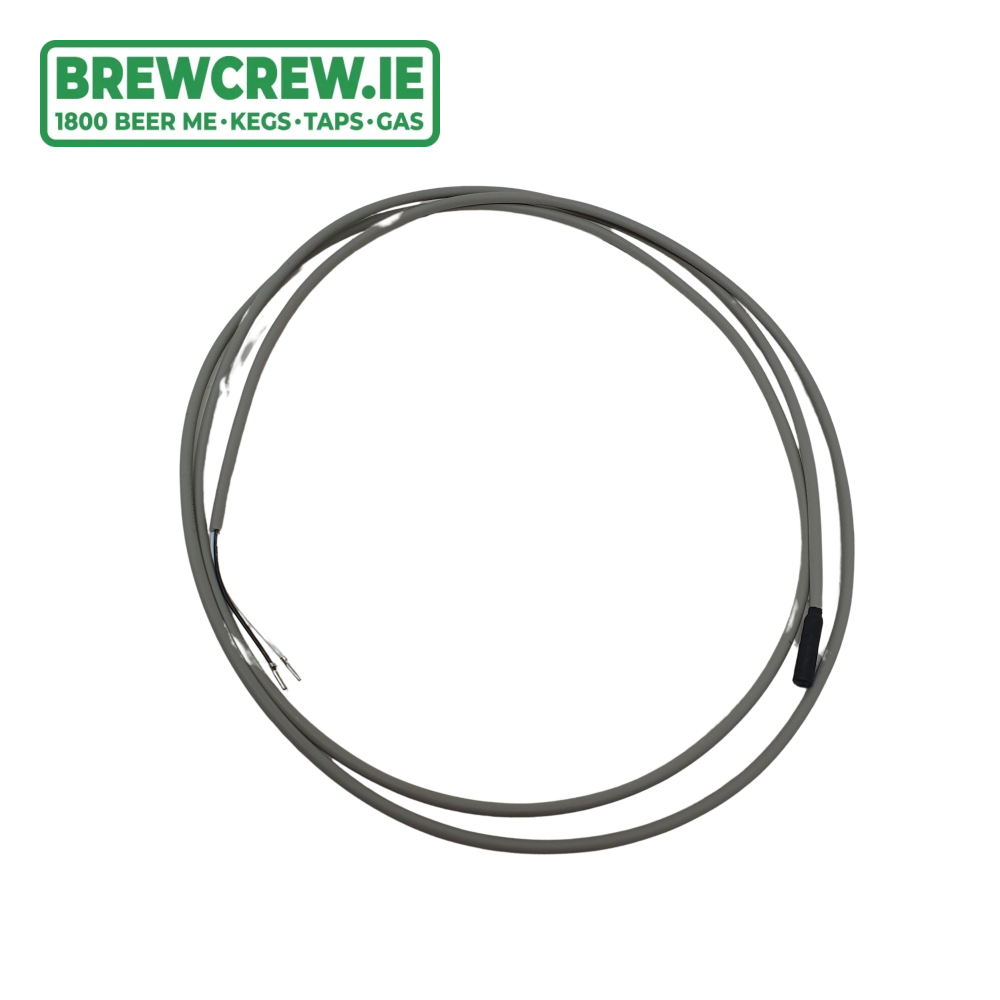

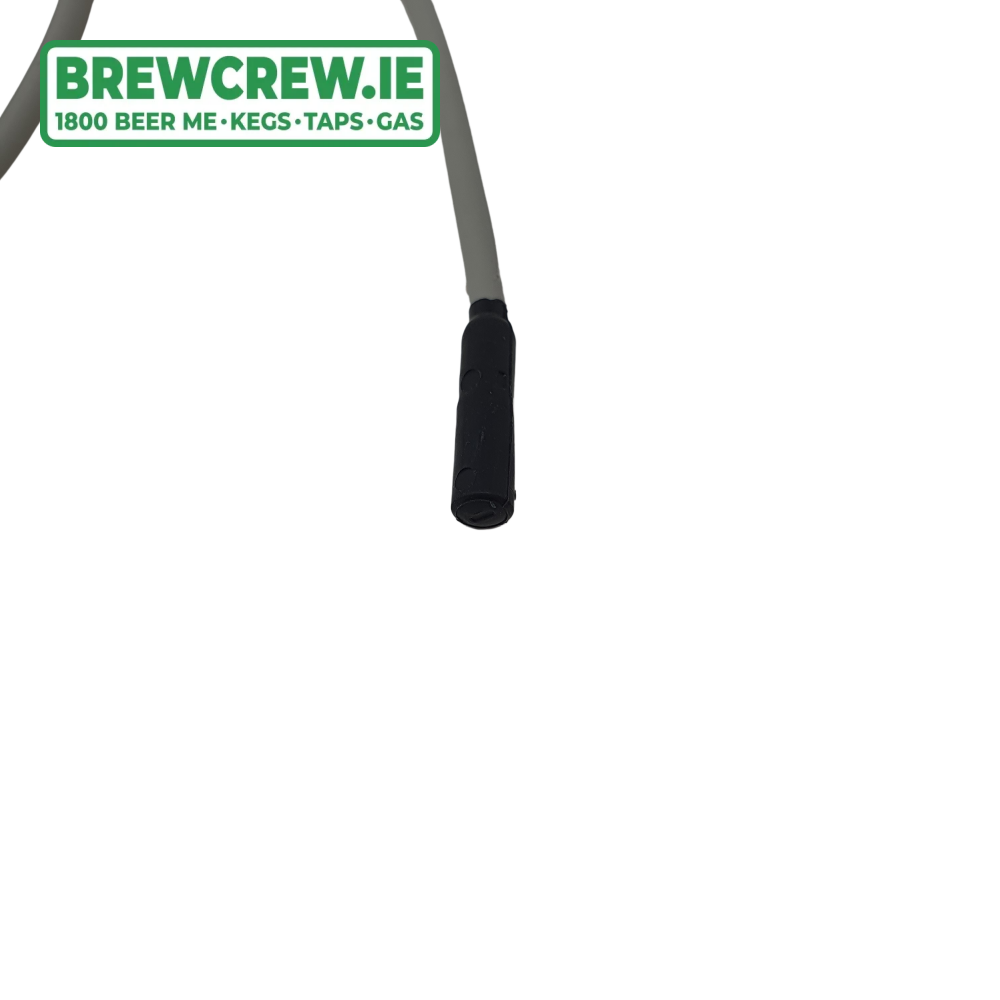

 - 1.5 metres spare probe for a digital thermostat.

Information on Digital Temperature Control Associated With This Probe:

Eliwell - ID961

Booth:

CPARTS0006A

E.WELL BRANDELS SPARES - 1A5317



From the manufacturer:

The ID 961 controllers are devices suitable for applications on normal temperature refrigerating units. They are provided with a PTC thermostatic probe input (NTC can be selected by parameter) and a relay output for compressor management. Defrost cycles are controlled at time intervals by stopping the compressor.

The value of the probe’s reading is viewed on a display with two digits and a minus sign for ID 961, three digits and a minus sign for ID 961 LX.

All versions are provided with a TTL connection in order to use Copy Card, the quick programming accessory. The 16 A compressor relay options and the buzzer are also provided. These controllers are available in the 32x74 standard format with a choice of 230 Va or 12 Va/c power supply voltage.

Technical Data
Frontal protection	IP 65
Container	plastic resin PC+ABS UL94V–0
Dimensions	32x74 mm, depth 60 mm
Mouting	panel mounting, cut out 29x71 mm (+0.2/–0.1mm)
Usage temperature	-5...55°C
Storage temperature	-30...85°C
Usage environment humidity	10...90% RH
Storage environment humidity	10...90% RH
Serial	TTL port for Copy Card
Display	3½ digits plus sign
Precision	above 0.5% of bottom scale + 1 digit
Consumption	3 VA
Resolution	1°C or 0.1°C (selectable with a parameter).
Power supply	230Vac, 12Vac/cc ± 15%, 50/60Hz
